BUSINESS FUNCTION - VEHICLE BASIC CHARACTERISTIC MEASUREMENT CONTRACT TEST OVERVIEW

Vehicle basic characteristic
measurement Contract test overview

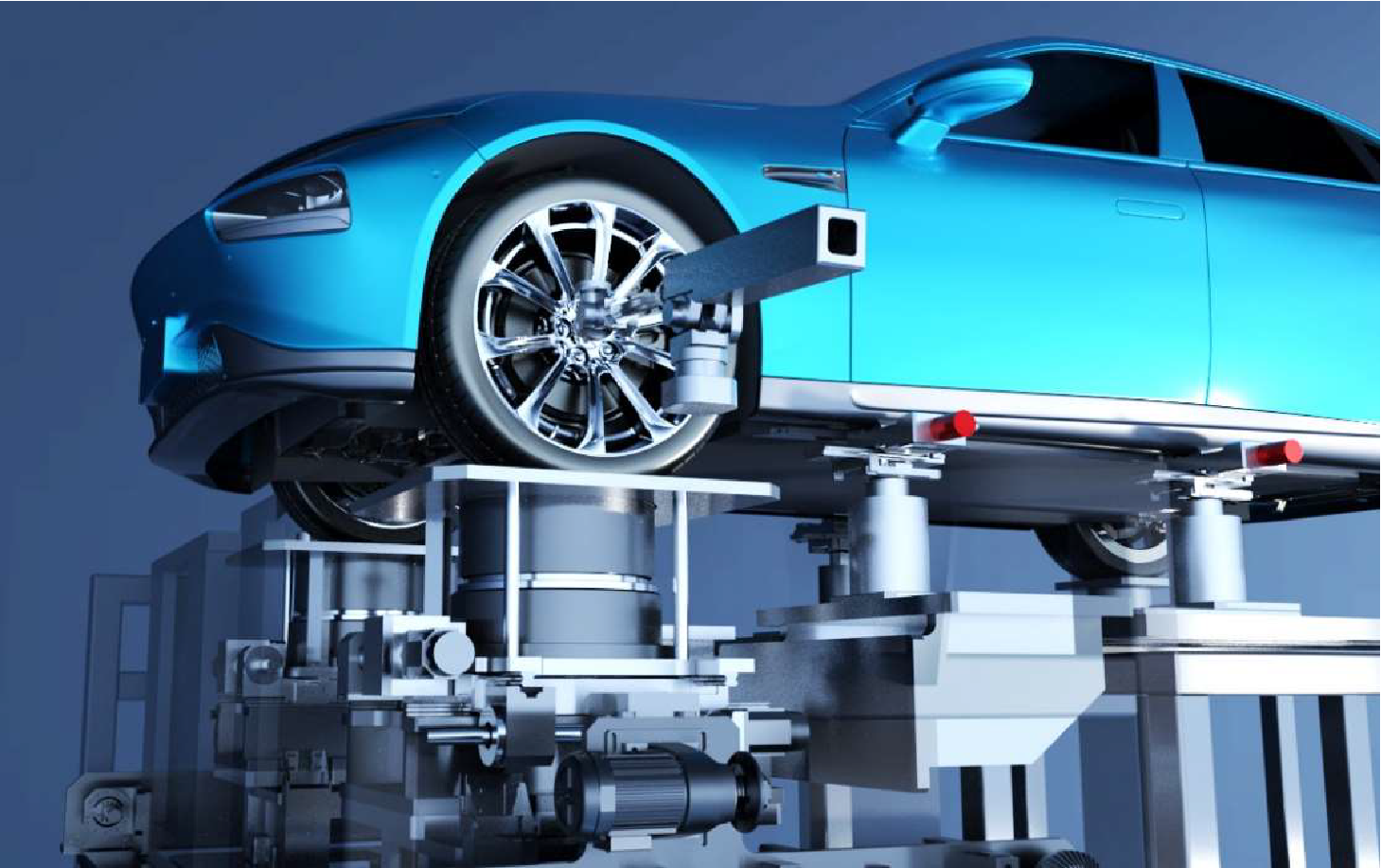

Since delivering its first machine in 1980, Automax has been the only manufacturer in Japan of basic vehicle characteristic measurement systems that statically measure suspension and steering parameters on a bench.

Starting in 2021, we have decided to install this proven system at our factory and conduct contract test.

The test involves inputting the load or displacement from the tire contact surface with the vehicle fixed, and measuring changes in wheel alignment and the load and moment on the tire contact surface.

Features and advantages of Automax

・The only one in Japan
・Accurate reproduction of alignment changes with zero-load servo control
・Low crosstalk load measurement that enables zero-load servo control
・Adopts the latest electric actuator
・Measurement data can be read in CarSim

Provided data

・Dataset for CarSim .par file
・Measurement data for each test
(Tables 4 to 9 on the right)

Measurement flow
1	Specification information input
2	Vehicle mounted
3	Vehicle fixed

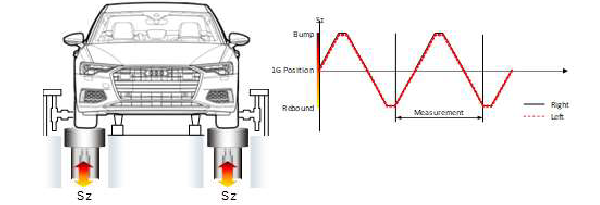

4	Up-and-down displacement input (In-phase)

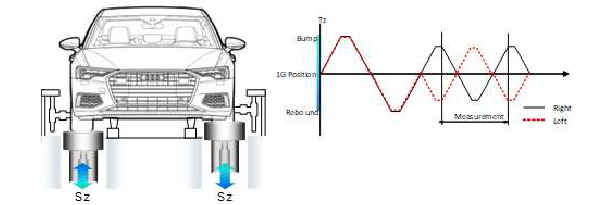

5	Up-and-down displacement input (Reverse phase)

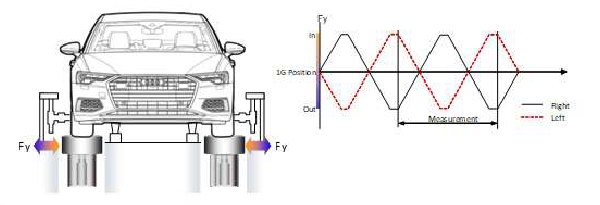

6	Left and right load input (Opposite direction input)

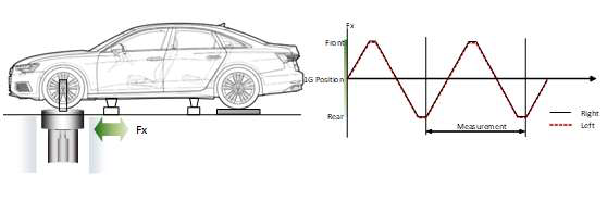

7	Front and rear load input (Same direction input)

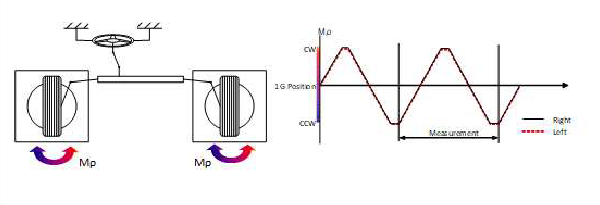

8	Running torque input Steering fixing (Same direction input)

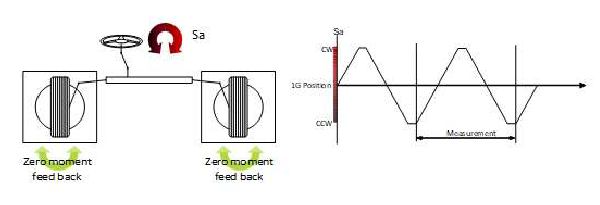

9	Steering input
10	Swapping the front and rear of the vehicle
11	Perform steps 3 to 9
12	Measurement data output/vehicle exit

Vehicle basic characteristic measurement device specification

Vehicle to be measured
Wheel base	1900〜3500mm
Tread	1200〜1750mm
Vehicle weight	Up to 2500 kg
Wheel alignment change measurement range
Variation of camber angle (Ax)	±15deg
Variation of Caster angle（Ay)	±25deg
Variation of Toe angle（Az)	±60deg
Longitudinal displacement（Wx)	±100mm
Laetral displacement（Wy)	±100mm
Vertical displacement（Wz)	±125mm

Operating range
Input equipment Longitudinal displacement（Sx)	±100mm
Input equipment Lateral displacement（Sy)	±100mm
Input equipment Vertical displacement（Sz)	±200mm
Input equipment Table angle（Tz)	±60deg
Input equipment Steering angle（Sa)	±900deg
Input equipment Longitudinal force（Fx)	±9kN
Input equipment Lateral force（Fy)	±9kN
Input equipment Vertical force（Fz)	±20kN
Input equipment Aligning torque（Mz)	±600N.m
Input equipment Steering force(torque)（St)	±50N.m
